4.0" GD 2500Q VX Fluid End
Scan, Identify, Quote - It's That Simple!
Your time is valuable, and we’ve streamlined the process to save you both time and effort.
Step 1: Identify the Part You Need

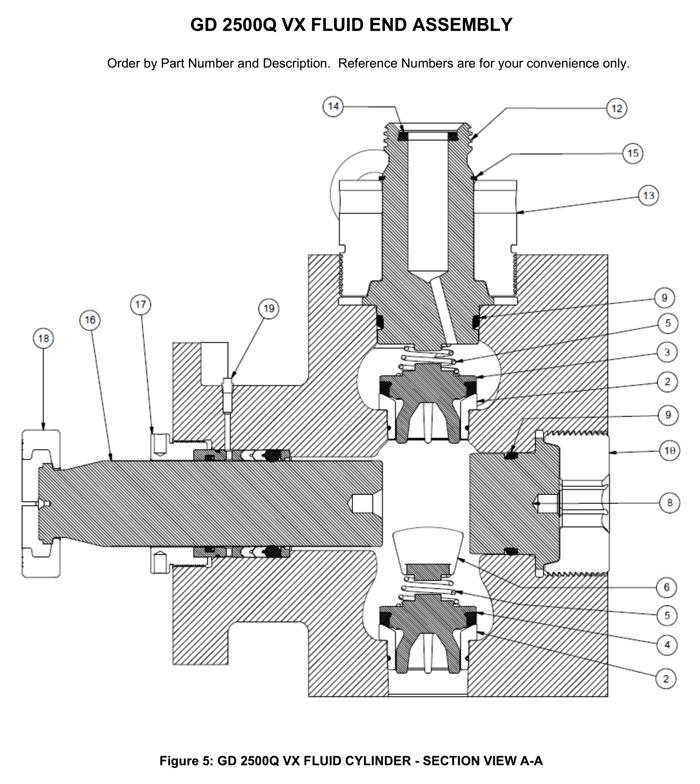

View the diagram of the GD 2500Q VX Fluid End Assembly to identify the part you need for your equipment. Each part is marked with a unique reference number, making it easy to determine the specific component required.
.png?width=700&height=785&name=GD_2500VXFluidEnds(52).png)
Step 2: Select Your Part From the List
Refer to the table below for a list of all reference numbers for the 4.0" GD 2500Q VX Fluid End Assembly, along with their descriptions. Use this information to select the part number(s) required for your needs.
4.0" GD 2500Q VX FLUID END ASSEMBLY
Submit a request by Part Number and Description. Reference Numbers are for your convenience only.
| Ref. No. | Description | Qty | Part Number |
| 2 |
VALVE SEAT (DISCHARGE AND SUCTION) - Redline+ |
10 |
PP1178891 |
| 3 |
VALVE (DISCHARGE AND SUCTION) - Redline+ |
10 |
PP1222694 |
| 5 | SPRING - VALVE (DISCHARGE AND SUCTION) |
10 |
918VP023 |
| 6 | FALCON RETAINER | 5 |
PP1085786 |
| 7 | VALVE COVER (DISCHARGE) | 4 |
PP1131148 |
| 8 | VALVE COVER (SUCTION) | 5 |
PP1131146 |
| 9 | SEAL (DISCHARGE/SUCTION) | 10 |
PP1190292 |
| 10 | RETAINER NUT (SUCTION) | 5 |
PP1027593 |
| 11 | RETAINER NUT (DISCHARGE) | 4 |
PP1202297 |
| 12 |
2" 1502 GAUGE CONNECTOR DISCHARGE VALVE COVER |
1 |
PP1131149 |
| 13 |
RETAINER (GAUGE CONNECTOR) |
1 |
PP1202390 |
| 14 |
WECO SEAL 2" |
1 |
901SH06-1 |
| 15 | RING - RETAINING | 1 |
65U45 |
| 16 |
4.0" PLUNGER (EXTENDED LIFE) |
5 |
PP1075485 |
| 17 |
V THREAD GLAND BUTTRESS THREAD GLAND |
5 5 |
PP1130320 PP1223376 |
| 18 |
PLUNGER COUPLING (4.0") |
5 |
342-C-78 |
| 19 |
PLUG |
5 |
64AA5 |
| 20 |
EYE - LIFTING |
2 |
VP1090896 |
| 21 |
PLATE – NAME FLUID END |
1 |
512762000 |
| 22 |
PLATE – DATA WARNING |
1 |
300OPA454 |
|
REDLINE+ PACKING HARD SET |
5 |
400GDP4060 |
|
|
REDLINE+ PACKING SOFT SET |
5 |
400GDP718 |
Step 3: Request a Quote
To request a quote, simply input the selected part number(s) and quantity in our comment section below. Once submitted, a GD Energy Products sales representative will follow up with detailed pricing and ordering information.
Want to Get the Most Out of Your Equipment?
Check out the Pump University Video Library for expert-led, on-demand training on Redline+ packing, valves, seats, and more. These videos help your team improve maintenance practices, extend component life, and reduce costly downtime.
About the VX Fluid End
Meeting today’s high demands in pressure pumping applications, the VX Fluid End from GD Energy Products is designed with high quality, performance, longevity, and a friendly price point in mind. Built with a smaller forging and simplified external geometry, the VX provides a lightweight, service-friendly design for today’s competitive fracking landscape.
