GD 3000 Fluid End Parts
Step-by-Step Guide to Requesting Parts
- Frac and Well Service Parts Library
- Fluid End Parts 52 NX, 4.0
- Fluid End Parts 52 NX, 4.5
- Fluid End Parts 52 NX, 5.0
- Fluid End Parts 60 NX, 4.0
- Fluid End Parts 60 NX, 4.5
- Fluid End Parts 52 VX, 4.0
- Fluid End Parts 52 VX, 4.5
- Fluid End Parts 60 VX, 4.0
- Fluid End Parts 60 VX, 4.5
- Fluid End Parts 60 QSS, 5.0
- Fluid End Parts 60 QSS, 4.5
- Fluid End Parts 3000, 5.0
GD 3000 Fluid End, 5.0”
Scan, Identify, Quote - It's That Simple!
Your time is valuable, and we’ve streamlined the process to save you both time and effort.
Step 1: Identify the Part You Need

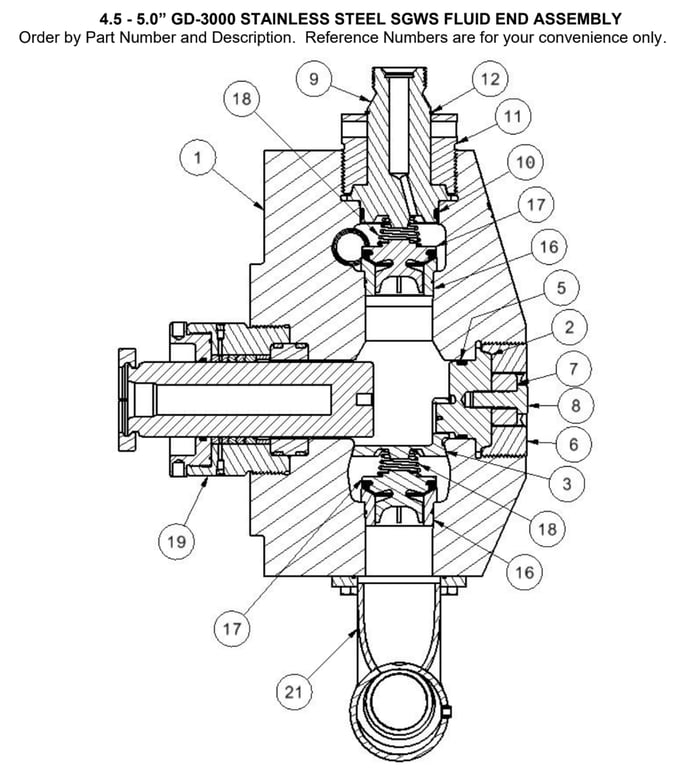

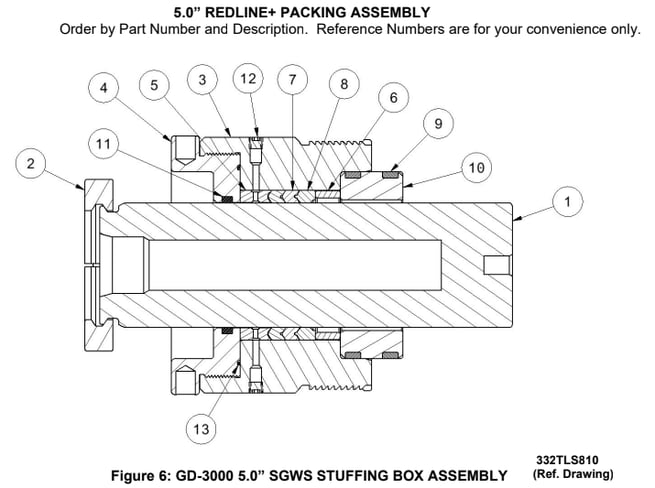

Start with the drawing that matches the area of the fluid end you are servicing. Use the Fluid End Assembly drawing for main fluid end components, or use the Stuffing Box Assembly drawing for stuffing box-related spare parts.
-2.png?width=700&height=769&name=image%20(1)-2.png)
Step 2: Select Your Part From the List
After locating the reference number in the appropriate drawing, use the matching parts list to confirm the exact part number and description. Please request parts by part number and description. Reference numbers are intended only to help you identify parts in the drawing.
5.0” GD 3000 FLUID END PARTS LIST
Order by Part Number and Description. Reference Numbers are for your convenience only.
| Ref. No. | Description | Qty | Part Number |
| 1 | FLUID CYLINDER 4.5 – 5.0” SGWS STAINLESS STEEL | 1 |
500TLSSGWSSS |
| 2 | VALVE COVER (SUCTION) | 3 |
N/A |
| 3 | SPRING RETAINER (SUCTION) |
3 |
N/A |
| 4 | DOWEL PIN (SUCTION VALVE COVER) | 3 |
62M48 |
| 5 | SEAL (SUCTION VALVE COVER) | 3 |
PP1222359 |
| 6 | RETAINER (SUCTION COVER) | 3 |
309TLS205 |
| 7 | LOCK (SUCTION VALVE COVER) | 3 |
300TLS760 |
| 8 | SCREW (SUCTION VALVE COVER LOCK) | 3 |
302TLS655 |
| 9 | VALVE COVER (DISCHARGE GAGE CONNECTION) | 1 |
321TLS147 (PP1079019) |
| 10 | SEAL - VALVE COVER (DISCHARGE GAGE) | 1 |
PP1222359 |
| 11 | RETAINER (DISCHARGE GAGE) | 1 |
315TLS205 |
| 12 | RETAINING RING (DISCHARGE GAGE) | 1 |
65U45 |
| 13 | VALVE COVER (DISCHARGE) | 2 |
PP1052997 |
| 14 | SEAL (DISCHARGE VALVE COVER) | 2 |
PP1222359 |
| 15 | RETAINER (DISCHARGE COVER) |
2 |
309TLS205 |
| 16 | VALVE SEAT (SUCTION & DISCHARGE) | 6 |
PP1198682 |
| 17 | VALVE (SUCTION & DISCHARGE) | 6 | PP1198592 |
| 18 | VALVE SPRING (SUCTION & DISCHARGE) | 6 | 918PN05 |
| 19 | 4.5 STUFFING BOX ASSEMBLY | 3 | N/A |
| 5.0 STUFFING BOX ASSEMBLY | 3 | N/A | |
| 20 | FLANGE GROUP | 2 | N/A |
| 21 | SUCTION MANIFOLD GROUP | 1 | N/A |
| 22 | FLUID CYLINDER SUPPORT | 2 | PP1064452 |
5.0” GD 3000 STUFFING BOX PARTS LIST
Order by Part Number and Description. Reference Numbers are for your convenience only.
| Ref. No. | Description | Qty | Part Number |
| 1 |
PLUNGER, 5" |
1 |
PP1069271 |
| 2 |
COUPLING, PLUNGER (INCLUDES NEXT ITEM) |
1 |
301TLS092 |
|
SCREW |
2 |
75P1 |
|
| 3 |
STUFFING BOX, 5” STAINLESS STEEL* |
1 |
PP1057239 |
| 4 |
NUT, PACKING |
1 |
308TLS008 |
| 5 |
SPACER, LANTERN |
1 |
305TLS445 |
| 6 |
SPACER, PACKING |
1 |
PP1223378 |
| 7 |
PACKING, PRESSURE RING |
2 |
HN1773-1618A |
| 8 |
PACKING, HEADER RING |
1 |
HN224-1757 |
| 9 |
SEAL, STUFFING BOX |
2 |
PP1198528 |
| 10 |
SLEEVE, STUFFING BOX SEAL |
1 |
PP1004318 |
| 11 |
SEAL, PACKING NUT |
1 |
60AM74 |
| 12 |
PLUG |
8 |
64AC2 |
| 13 |
O-RING |
1 |
108516 |
|
*USE TS-74 TORQUE-TIGHT A/G or CRC COPPER ANTI-SEIZE WHEN INSTALLING STAINLESS STEEL STUFFING BOXES. |
|
Step 3: Request a Quote
To request a quote, simply input the selected part number(s) and quantity in our comment section. Once submitted, a GD Energy Products sales representative will follow up with detailed pricing and ordering information.
Want to Get the Most Out of Your Equipment?
Check out the Pump University Video Library for expert-led, on-demand training on Redline+ packing, valves, seats, and more. These videos help your team improve maintenance practices, extend component life, and reduce costly downtime.
About the GD 3000 Fluid End
The GD 3000 Fluid End from GD Energy Products is built for demanding pressure pumping applications and designed to support high-pressure frac operations over longer periods of time. Featuring a forged SAE 4330 autofrettaged fluid end, through stud fluid end design, and replaceable stuffing boxes, the GD 3000 Fluid End supports extended field service while making maintenance, removal, and plunger size conversion easier. As part of the GD 3000 heavy-duty frac pump, it works with Redline+ Packing, Redline+ Frac Valves and Seats, and pump plungers to support reliable performance in severe-duty applications.
Contact us today for exclusive customized pricing!
